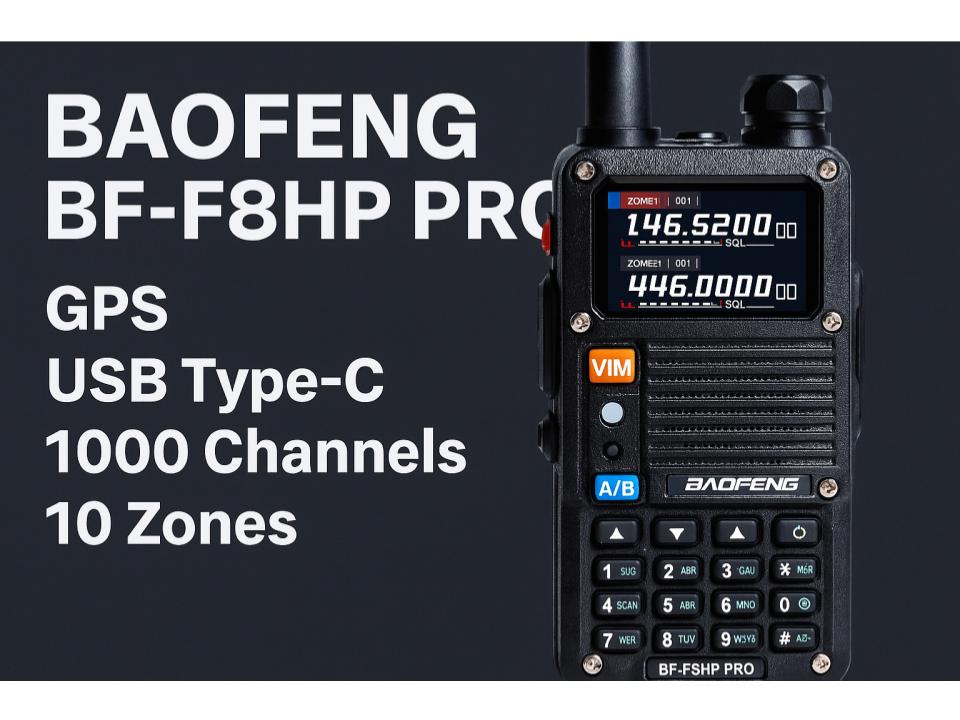

The Baofeng BF-F8HP Pro represents the next step in the evolution of the popular UV-5R and BF-F8HP series. Designed for radio enthusiasts who want a durable, high-power handheld with improved firmware and extended battery life, this model blends performance and versatility with professional-grade reliability.
Equipped with an upgraded 8 W transmitter, enhanced audio circuitry, and improved heat dissipation, the BF-F8HP Pro is ideal for both amateur operators and field professionals who need consistent, long-range communication in demanding conditions.
Below is a complete breakdown of its specifications, features, and real-world performance – followed by a section on known issues and user-reported quirks.
Covers both VHF and UHF bands for flexible two-way communication across repeaters and simplex channels.
FM Broadcast Receiver
65โ108 MHz
Allows you to listen to FM radio stations for entertainment or emergency updates.
Transmit Power
8 W (High), 4 W (Med), 1 W (Low)
Delivers strong signal output for extended range while offering lower settings for battery conservation.
Operating Voltage
7.4 V DC (Li-ion)
Compatible with standard Baofeng chargers and vehicle power adapters.
Battery Capacity
2100 mAh (Standard) / 3800 mAh (Extended)
Provides up to 12 hours of talk time and 40โ48 hours standby; extended pack ideal for field use.
Modulation Type
FM (F3E), wide / narrow selectable
Enables clearer audio and compliance with regional narrowband requirements.
Audio Output Power
โ 1 W (8 ฮฉ load)
Loud and intelligible audio for outdoor environments.
Receiver Sensitivity
โ 0.2 ยตV for 12 dB SINAD
Excellent for weak signal reception at distance.
Selectivity / Spurious Rejection
โฅ 65 dB
Filters out interference from adjacent channels.
๐ Communication Features
Feature
BF-F8HP Pro Value
What It Means in Practice
Dual Watch / Dual Standby
Supported
Lets you monitor two channels simultaneously โ useful for emergency and local group operations.
CTCSS / DCS Tone Squelch
50 CTCSS + 104 DCS
Filters unwanted signals and opens squelch only for preset tones.
VOX (Hands-Free)
Adjustable 1โ10 levels
Enables voice-activated transmit โ handy for mobile tasks or field operations.
Channel Memory
128 channels
Stores favorite repeaters and frequency presets for quick access.
Scan Function
5โ10 channels per second
Searches for active frequencies efficiently.
Voice Prompt
English / Chinese
Assists with menu navigation for beginners.
TX Timeout Timer (TOT)
15โ180 s adjustable
Prevents radio overheating and accidental continuous transmission.
Keypad Backlight
Dual-color (Blue / Orange)
Improves visibility at night or in low-light conditions.
Programming Software
CHIRP / OEM supported
Simplifies channel management and firmware tuning via PC.
๐ Power, Battery & Charging
Parameter
Value
Practical Note
Battery Type
7.4 V Li-ion rechargeable
Long-life battery for portable operation.
Standard Battery
BL-8 (2100 mAh)
Provides excellent runtime for day use.
Extended Battery
3800 mAh (optional)
Ideal for multi-day events or SAR operations.
Charging Time
4โ5 hours
Quick-charge via desktop dock with status LED.
Charger Input
10 V DC / 500 mA
Works with wall and vehicle adapters.
Battery Eliminator
Optional 12 V cable
Enables continuous use in vehicles or command posts.
๐งฑ Physical & Build Characteristics
Attribute
Value
Practical Meaning
Dimensions (H ร W ร D)
110 ร 58 ร 32 mm
Compact enough for belt carry yet ergonomic in hand.
Weight
โ 260 g (with battery and antenna)
Slightly heavier than UV-5R due to reinforced chassis and larger battery.
Antenna Connector
SMA-Female
Compatible with standard Baofeng and aftermarket antennas.
Material / Build
Polycarbonate frame with internal metal heat sink
Enhances thermal stability and durability under high-power use.
Water Resistance
IP-54 rating
Resistant to dust and light rain.
Display Type
Dual-line LCD with variable color backlight
Displays dual frequency readouts and status icons.
Design Finish
Black chassis with orange highlight keypad
Modern design that distinguishes the Pro model from the standard F8HP.
๐ก Range & Performance in the Field
Condition
Expected Range
Notes
Urban Environment
1โ3 miles
Typical range in built-up areas with moderate obstructions.
Suburban / Open Field
3โ8 miles
Excellent performance for general field communications.
High-Gain Antenna Upgrade
10โ15 miles possible
Upgrading to Nagoya NA-771 or Signal Stick significantly extends range.
Repeater Access
Up to 25 miles +
Strong signal reliably connects to distant repeaters.
๐งฉ Accessories & Expandability
Accessory
Compatibility
Why It Matters
Speaker Mic
Kenwood 2-pin standard
Enhances clarity and ease of use in team operations.
Programming Cable
USB-to-TTL (2-pin)
Allows CHIRP setup and firmware adjustments.
Extended Battery / Eliminator
BL-8 / 12 V adapter
Enables continuous operation in mobile setups.
High-Gain Antenna
SMA-Male compatible
Boosts transmit and receive performance.
Headset / Earpiece
Yes (2-pin PTT)
Perfect for discreet communications.
Car Charger / Dock
Included desktop dock
Convenient charging and storage solution.
๐ Regulatory & Certification Details
Parameter
Value
Meaning for Users
FCC ID
2AJGM-BF-F8HP-PRO
Certified for U.S. amateur use under Part 97.
CE Mark
Yes
Meets EU standards for electromagnetic compatibility.
License Requirement
Amateur license required for TX
Legal to receive without a license, transmit restricted to ham bands.
Frequency Restrictions
Receive FRS/GMRS / Public safety frequencies
Must not transmit outside authorized ranges.
Firmware
Upgraded Pro firmware with power mode memory
Offers stable menu structure and better thermal management control.
๐ฐ๏ธ Model Variants & Compatibility
Model Variant
Key Difference
Shared Features
BF-F8HP Pro
Reinforced chassis, improved PA stage and firmware
Same form factor and battery compatibility as BF-F8HP.
BF-F8HP Standard
8 W version without firmware enhancements
Compatible accessories and programming settings.
UV-5R Classic
5 W transmit output
Same memory layout and menu structure.
โ ๏ธ Known Issues
Issue
Description
Impact / Fix
High Power Heat Build-Up
Extended transmission at 8 W causes noticeable warmth on the metal core.
Use short transmissions or reduce to Medium power for prolonged use.
Firmware Differences Between Batches
Some units ship with slightly different menu orders and firmware IDs.
Use CHIRP to verify firmware type and back up configuration.
Charger Dock Contact Issues
Dock alignment can be inconsistent, causing no charge indicator.
Ensure radio is seated properly or gently bend charging pins upward.
Antenna Performance Variability
Stock antenna performs inconsistently across frequencies.
Upgrade to a quality aftermarket antenna (Nagoya or Signal Stick).
Display Backlight Bleed
Slight uneven illumination on some LCD panels.
Cosmetic only โ no effect on functionality.
VOX Trigger Delay
Users report minor lag in VOX activation timing.
Adjust VOX sensitivity or use manual PTT for critical timing.
Audio Distortion at Full Volume
Max volume output can produce crackling on certain batches.
Keep volume below 80% for optimal clarity.
Keypad Paint Wear Over Time
High-use units show fading key labels after months of operation.
Silicone keypad covers help reduce wear.
๐งญ Practical Takeaways
The BF-F8HP Pro combines the UV-5Rโs proven design with enhanced power, firmware stability, and audio performance.
8 W output significantly boosts range without sacrificing portability.
Perfect for outdoor operations, event coordination, and ham training use.
Known issues are minor and mostly affect ergonomics rather than core functionality.
Backward compatible with UV-5R and F8HP accessories, making upgrades seamless.
๐ Conclusion
The Baofeng BF-F8HP Pro stands as a refined high-power handheld for serious radio enthusiasts. With its 8 W output, improved firmware, and strong audio clarity, it outperforms most radios in its class while remaining affordable and easy to use.
For users who need a dependable handheld radio for amateur, emergency, or professional communication, the BF-F8HP Pro offers a perfect balance of power, durability, and value.
