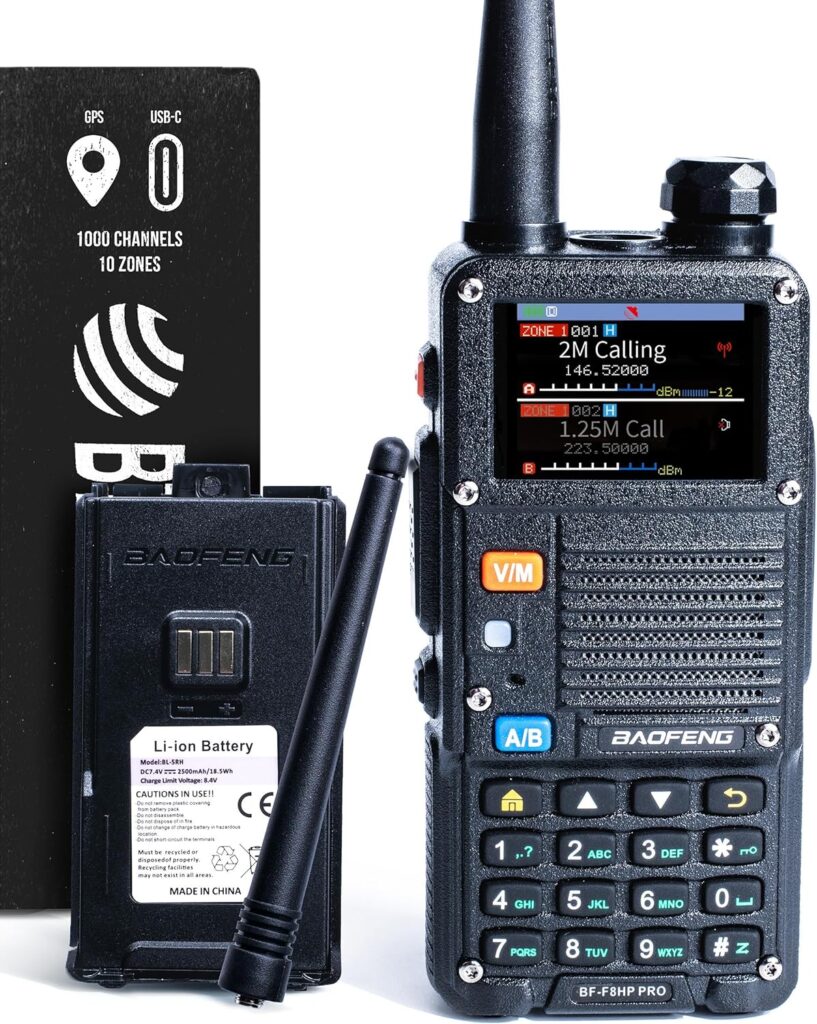

The Baofeng BF-F8HP (High Power) is the most advanced model in the UV-5R family line. Built with a more powerful RF amplifier and upgraded firmware, it delivers stronger signal performance, better audio quality, and improved range. Designed for amateur radio operators who want a durable, versatile handheld with extra punch, the BF-F8HP combines simplicity, reliability, and professional-grade performance at a still-accessible price point.
This guide details its complete specifications, explains what each means in real-world use, and highlights known issues and tips to maximize reliability.
Covers most ham, emergency, and local communication channels. Dual-band coverage makes it suitable for both urban repeaters and rural simplex use.
FM Broadcast Receiver
65–108 MHz
Lets you monitor FM radio for news, weather, or entertainment between transmissions.
Transmit Power
8 W (High), 4 W (Medium), 1 W (Low)
The key upgrade over UV-5R/RE series — up to 60% more power for better signal penetration and longer range.
Power Levels
High / Med / Low
Allows flexible balance between range and battery conservation.
Operating Voltage
7.4 V DC (Li-ion)
Standard across Baofeng handhelds, ensuring accessory and charger compatibility.
Battery Capacity
2100 mAh (standard)
Provides extended operating time — up to 12 hours active or 48 hours standby.
Modulation Type
FM (F3E), wide/narrow selectable
Maintains clear audio with compliance to narrowband regulations.
Audio Output Power
≈ 1 W
Loud and clear speaker output, suitable for outdoor or noisy environments.
Receiver Sensitivity
≈ 0.2 µV
High sensitivity for detecting weak signals and distant repeaters.
Selectivity / Spurious Rejection
65 dB
Filters out unwanted adjacent-channel interference.
🔊 Communication Features
Feature
BF-F8HP Value
What It Means in Practice
Dual Watch / Dual Standby
Supported
Lets you monitor two frequencies simultaneously. Perfect for listening to a repeater and a simplex channel together.
CTCSS / DCS Tone Squelch
50 CTCSS + 104 DCS
Filters out unwanted chatter, only opening squelch for your group or repeater tone.
VOX (Hands-Free)
Adjustable sensitivity (1–10)
Enables automatic transmission on voice detection — great for driving or working hands-free.
Channel Memory
128 channels
Saves repeaters, local simplex frequencies, and emergency channels.
Scan Function
5–10 channels/s
Finds active signals automatically.
Voice Prompt
English / Chinese
Simplifies navigation and setup.
TX Timeout Timer (TOT)
15–180 s
Prevents overheating and long accidental key-downs.
Keypad Backlight
Blue / Orange
Dual-color illumination for night use.
Programming Software
CHIRP & Baofeng OEM compatible
Enables quick setup of memories, tones, and settings.
🔋 Power, Battery & Charging
Parameter
Value
Practical Note
Battery Type
7.4 V Li-ion
Rechargeable and long-lasting.
Standard Battery
BL-8 (2100 mAh)
Improved over UV-5R’s BL-5 pack.
Extended Battery Option
3800 mAh (third-party)
Great for multi-day field use or SAR operations.
Charging Time
4–5 hours
Uses upgraded desktop charging dock with LED indicator.
Charger Input
10 V DC / 500 mA
Same as UV-series, backward-compatible.
Battery Eliminator
Optional car cable
Allows continuous vehicle-mounted operation.
🧱 Physical & Build Characteristics
Attribute
Value
Practical Meaning
Dimensions (H × W × D)
110 × 58 × 32 mm
Compact form factor for belt or pocket carry.
Weight
≈ 250 g
Light but durable — good for long shifts.
Antenna Connector
SMA-Female
Compatible with common high-gain SMA-Male antennas.
Material / Build
Reinforced polycarbonate with metal frame
Increased durability over UV-5R, better heat dissipation.
Water Resistance
IP-54 (splash resistant)
Handles rain, dust, and outdoor environments.
Display Type
Dual-line LCD with orange backlight option
Shows two channels or names simultaneously.
Design Finish
Matte black with silver accents
Professional look while retaining UV-series ergonomics.
📡 Range & Performance in the Field
Environment
Expected Range
Notes
Urban / Dense Areas
1–3 miles
Buildings and terrain limit line-of-sight, but still reliable for local use.
Suburban / Rural Areas
3–8 miles
Clear, stable communication with little interference.
High-Gain Antenna Upgrade
Up to 12 miles
Using a Nagoya NA-771 or RH-771 antenna boosts coverage.
Repeater Access
Up to 25 miles +
Easily connects to repeaters for extended regional reach.
🧩 Accessories & Expandability
Accessory
Compatibility
Why It Matters
Speaker Mic
Kenwood 2-pin
Improves clarity and usability for teams or dispatch.
Programming Cable
USB-to-TTL (2-pin)
Allows CHIRP setup via computer.
Extended Battery / Eliminator
BL-8 / 12 V adapter
Enables vehicle or multi-day field operation.
Headset / Earpiece
2-pin PTT
Useful for discrete communication or security roles.
High-Gain Antenna
SMA-Male compatible
Greatly extends range and signal strength.
Car Charger / Dock
Upgraded cradle
Secure and reliable drop-in charging.
🌐 Regulatory & Certification Details
Parameter
Value
Meaning for Users
FCC ID
2AJGM-BF-F8HP
FCC Part 97 approved for amateur operation.
CE Mark
Yes
EU-compliant for EMC and safety.
License Requirement
Amateur (U.S. Part 97)
Required for legal transmission.
Frequency Restrictions
FRS/GMRS receive only
Transmission limited to licensed ham frequencies.
Firmware
Exclusive BF-F8HP firmware
Provides additional power and menu options vs UV-5R.
🛰️ Model Variants & Compatibility
Model Variant
Key Difference
Shared Features
BF-F8HP (High Power)
8 W output, improved firmware
Fully compatible with UV-5R accessories.
UV-5R Classic
5 W output
Same body and channel structure.
UV-5R Plus / UV-5RA
Cosmetic variants
Shared software and batteries.
UV-82HP
Dual PTT and larger body
Same power output, larger battery.
⚠️ Known Issues
Issue
Description
Impact / Fix
Heat Build-Up at High Power
Continuous 8 W transmission can cause noticeable heat.
Use short transmissions or switch to Medium power when possible.
Charger Dock Sensitivity
Needs precise placement to engage contacts.
Align carefully and watch for charging LED.
Firmware Menu Differences
Some units use updated menu numbering inconsistent with older manuals.
Use CHIRP to verify and document your firmware.
Antenna Variation
Stock antenna may not perform consistently across batches.
Replace with a high-gain antenna (Nagoya NA-771 recommended).
VOX Delay
Slight transmission lag in VOX mode.
Adjust VOX level or use manual PTT for precision.
Keypad Paint Wear
Letters fade with heavy use.
Protective overlays or silicone case help prolong appearance.
🧭 Practical Takeaways
The BF-F8HP is the most capable member of the UV-5R family, offering triple power settings and a more efficient transmitter module.
Delivers longer range and stronger signal quality, especially with a quality aftermarket antenna.
Ideal for field operations, hiking, or emergency response where durability and battery life are key.
Known issues are minor and easily managed — performance remains consistently strong.
🏁 Conclusion
The Baofeng BF-F8HP represents the peak evolution of Baofeng’s UV-5R platform — robust, affordable, and high-performing. Its combination of 8 W output, long battery life, and full CHIRP programmability makes it an excellent all-round choice for ham operators and outdoor communicators alike.
For anyone seeking an entry-level radio with professional capability, the BF-F8HP stands out as the ideal balance between power, portability, and value.
