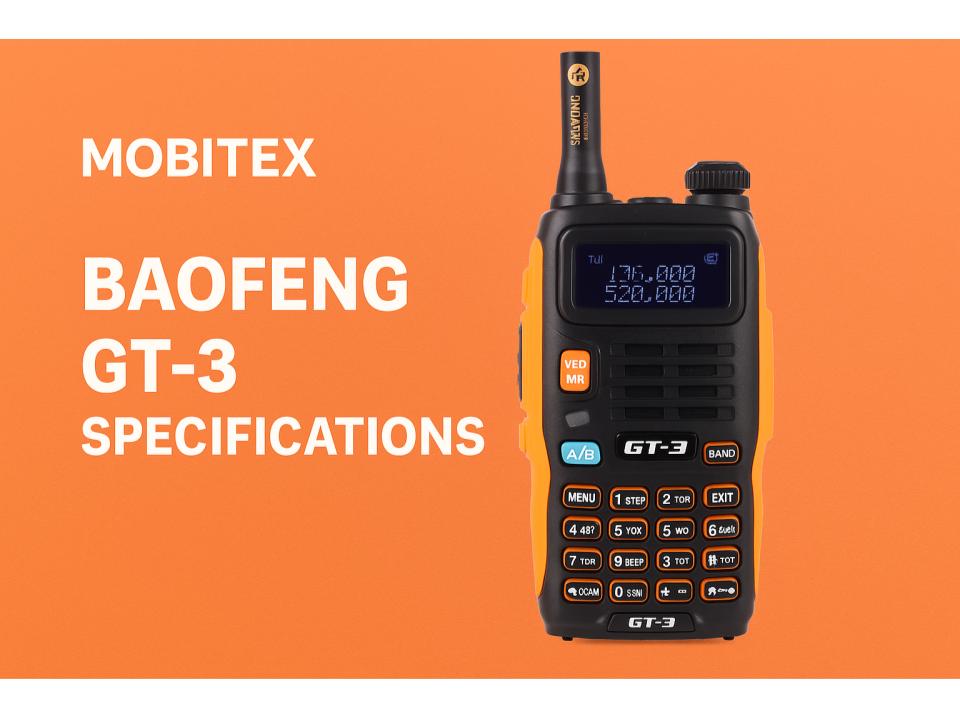

The Baofeng GT-3 is a ruggedized, upgraded version of the UV-5R series, co-developed with SainSonic to offer improved design, higher durability, and better audio performance. It’s part of Baofeng’s third-generation handhelds, blending high output power, enhanced speaker quality, and a reinforced shell that appeals to both amateur radio operators and outdoor users.
The GT-3’s reliability, combined with its dual-band performance and modern styling, makes it an excellent choice for anyone looking for a dependable, budget-friendly two-way radio.
Supports both amateur and general-use bands for flexible communication.
FM Broadcast Receiver
65–108 MHz
Lets you tune in to FM radio stations for news or entertainment.
Transmit Power
5 W (High) / 1 W (Low)
Adequate power for clear short- to medium-range communication.
Operating Voltage
7.4 V DC (Li-ion)
Compatible with Baofeng standard chargers and accessories.
Battery Capacity
1800 mAh standard / 2800 mAh optional
Provides 8–12 hours of operation, or longer with extended pack.
Modulation Type
FM (F3E), wide/narrow selectable
Ensures clear transmission and compliance with local regulations.
Audio Output Power
≈ 1 W @ 8 Ω
Loud and distortion-free audio in outdoor environments.
Receiver Sensitivity
≈ 0.25 µV
Reliable reception even for weak distant signals.
Selectivity / Spurious Rejection
≥ 60 dB
Reduces interference from nearby frequencies.
🔊 Communication Features
Feature
GT-3 Value
What It Means in Practice
Dual Watch / Dual Standby
Supported
Monitors two frequencies simultaneously.
CTCSS / DCS Tone Squelch
50 CTCSS + 104 DCS
Filters out unwanted signals for private communication.
VOX (Hands-Free)
Adjustable sensitivity
Activates transmission via voice input — ideal for mobile use.
Channel Memory
128 channels
Store local repeaters, simplex, and emergency channels.
Scan Function
Yes (5–10 ch/s)
Scans active frequencies efficiently.
Voice Prompt
English / Chinese
Audio prompts assist with configuration.
TX Timeout Timer (TOT)
15–180 s adjustable
Prevents overheating or accidental continuous transmission.
Keypad Backlight
Orange
Improves visibility at night.
Programming Software
CHIRP compatible
Simplifies setup and memory management via computer.
🔋 Power, Battery & Charging
Parameter
Value
Practical Note
Battery Type
7.4 V Li-ion rechargeable
Long-life battery suitable for extended operations.
Standard Battery
BL-5 (1800 mAh)
Included battery provides a full day’s use.
Extended Battery
BL-5L (2800 mAh)
Great for multi-day or field activities.
Charging Time
≈ 4 hours
Quick-charge with included desktop cradle.
Charger Input
10 V DC / 500 mA
Works with wall or car adapters.
Battery Eliminator
Optional 12 V cable
Runs the radio directly from a vehicle.
🧱 Physical & Build Characteristics
Attribute
Value
Practical Meaning
Dimensions (H × W × D)
110 × 58 × 32 mm
Compact form factor for belt or pocket carry.
Weight
≈ 260 g (with battery and antenna)
Lightweight yet durable for everyday field use.
Antenna Connector
SMA-Female
Compatible with common aftermarket antennas.
Material / Build
Reinforced ABS polycarbonate
More impact-resistant than standard UV-5R housing.
Water Resistance
IP-54
Splash- and dust-resistant for outdoor work.
Display Type
Dual-line LCD
Displays dual frequencies or names simultaneously.
Design Finish
Black and orange rugged trim
Offers improved grip and outdoor visibility.
📡 Range & Performance in the Field
Condition
Expected Range
Notes
Urban Areas
0.5–2 miles
Typical range with obstacles.
Suburban / Rural
2–6 miles
Excellent clarity in open environments.
Line-of-Sight / Elevated Use
10 miles +
Achievable under ideal terrain.
Repeater Access
Up to 20 miles
Works well for long-distance communication via repeaters.
🧩 Accessories & Expandability
Accessory
Compatibility
Why It Matters
Speaker Mic
Kenwood 2-pin
Enhances clarity in noisy environments.
Programming Cable
USB-to-TTL
Enables CHIRP setup and firmware backup.
Extended Battery / Eliminator
BL-5L / DC 12 V
Provides extra runtime or continuous operation.
High-Gain Antenna
SMA-Male compatible
Improves signal reach.
Headset / Earpiece
Yes (2-pin PTT)
Enables discreet communication.
Car Charger / Dock
Included cradle
Easy desktop or mobile charging.
🌐 Regulatory & Certification Details
Parameter
Value
Meaning for Users
FCC ID
ZP5BF-GT3
Certified under FCC Part 97 for amateur use.
CE Mark
Yes
Meets EU standards for safety and EMC.
License Requirement
Amateur license required (U.S.)
Legal for ham use; receive-only otherwise.
Frequency Restrictions
FRS/GMRS receive-only
Not approved for license-free transmission.
Firmware
UV-5R / GT-3 series shared firmware
Ensures compatibility with most Baofeng accessories.
🛰️ Model Variants & Compatibility
Model Variant
Key Difference
Shared Features
GT-3 Mark II
Updated firmware, improved receiver
Same power and battery specifications.
GT-3 TP (Tri-Power)
Selectable 1 W / 4 W / 8 W modes
Higher output power for greater range.
UV-5R
Base platform for GT-3
Same firmware and functionality.
GT-5
Later ruggedized design variant
Shares radio core and accessories.
⚠️ Known Issues
Issue
Description
Impact / Fix
Audio Distortion at High Volume
Speaker cone rattles when volume is set above 80%.
Reduce volume for cleaner audio output.
Antenna Performance Variability
Stock antenna may be slightly detuned in UHF band.
Upgrade to a Nagoya NA-771 for better range.
Charger Dock Alignment Issue
Dock contacts can misalign, causing slow charging.
Ensure the radio is seated firmly in the cradle.
Firmware Differences Between Batches
Menu numbers and tone steps may differ slightly.
Use CHIRP to identify firmware before uploading profiles.
Rubber Port Covers Loosening Over Time
Frequent mic or program port use can wear the seal.
Replace or secure with a thin adhesive strip.
Battery Contact Tolerances
Some third-party packs fit loosely.
Stick with OEM Baofeng batteries for best connection.
FM Mode Lockup Bug
Occasional hang when switching from FM to memory channels.
Restart or cycle VFO mode to restore.
Display Visibility in Sunlight
LCD screen can wash out under bright light.
Tilt screen or shade for optimal readability.
🧭 Practical Takeaways
The GT-3 offers the same trusted RF performance of the UV-5R with better ergonomics, tougher construction, and refined audio output. It’s ideal for outdoor enthusiasts, field technicians, or amateur operators who value durability and ease of use.
Known issues are generally minor and related to accessories or cosmetic wear rather than core functionality. When paired with a high-gain antenna and genuine Baofeng batteries, the GT-3 performs exceptionally well in both urban and field conditions.
🏁 Conclusion
The Baofeng GT-3 represents a thoughtful evolution of the UV-5R platform — robust, efficient, and affordable. With its dual-band support, strong transmit power, and reinforced casing, it’s well-suited for hiking, emergency use, and amateur radio operation.
If you’re looking for a compact, dependable handheld that combines Baofeng’s reliability with modern rugged styling, the GT-3 stands out as one of the most balanced models in its class.
