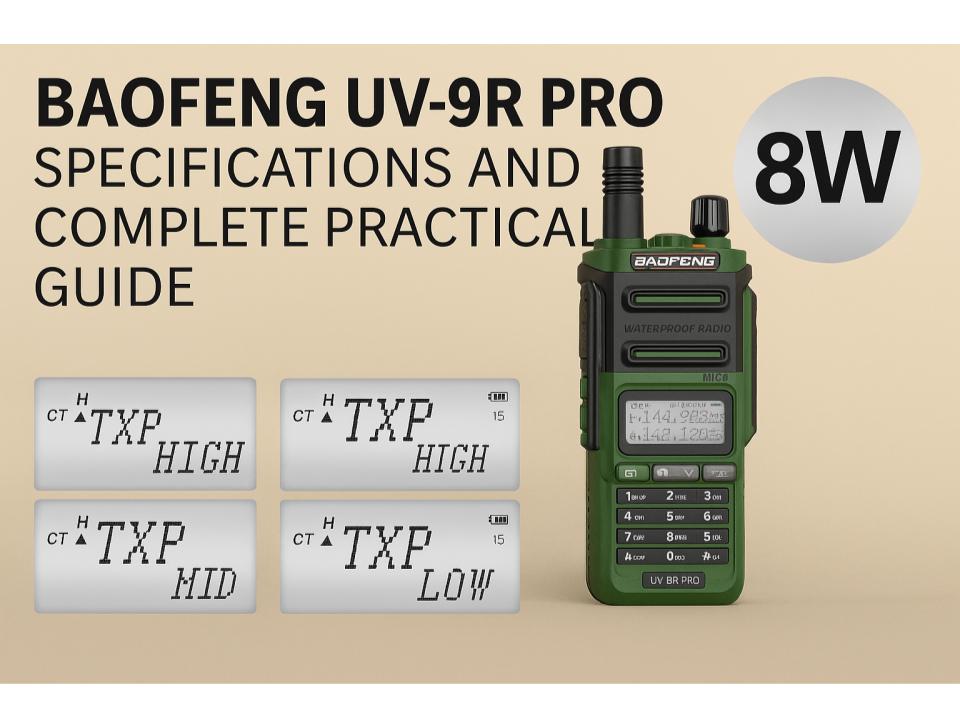

Baofeng UV-9R Pro Specifications and Complete Practical Guide

The Baofeng UV-9R Pro builds upon the UV-9R Plus platform with improved waterproofing, a larger battery, and enhanced durability for outdoor or industrial use. Known for its IP57 rating and rugged design, this dual-band transceiver is intended for both licensed amateur users and professionals who need reliable communications in harsh environments.

Below is a complete breakdown of its specifications, performance, and known issues, based on official documentation and verified field reports.

⚙️ Core Specifications

Specification	UV-9R Pro Value	Practical Meaning
Frequency Range	136–174 MHz (VHF), 400–520 MHz (UHF)	Covers VHF for open terrain and UHF for urban environments.
Transmit Power	5 W (VHF) / 4 W (UHF) High; 1 W Low	Provides strong output for handheld or repeater use.
Operating Voltage	DC 7.4 V ±10 %	Compatible with standard Baofeng charging systems.
Battery Capacity	4800 mAh Li-ion	Delivers over 24 hours of standby and up to 10 hours active use.
Memory Channels	128	Stores frequently used frequencies and repeaters.
Channel Spacing	12.5 / 25 kHz selectable	Adjustable for local band compliance.
Receiver Sensitivity	≤ 0.25 µV @ 12 dB SINAD	Excellent for weak signal reception.
Audio Output Power	1 W @ 16 Ω	Loud speaker suitable for outdoor noise.
Waterproof Rating	IP57 certified	Resists water and dust — can withstand 1 m submersion for 30 minutes.
FCC ID	2AJGM-UV9RPRO	Complies with Part 90 and Part 15 U.S. standards.

🔊 Communication and Functional Features

Feature	Detail	Practical Meaning
Dual-Band / Dual Watch	Yes (VHF & UHF simultaneous)	Monitor two frequencies at once for situational awareness.
CTCSS / DCS	50 CTCSS + 210 DCS	Reduces unwanted interference and enables private group calls.
VOX Function	11 sensitivity levels	Hands-free activation via voice.
SOS Alarm	Dedicated key for audible and transmit alert	Essential for emergency use in remote locations.
DTMF / ANI ID	Programmable via CHIRP	Supports selective calling and identification.
Repeater Offset	±0–69.99 MHz	Standard for ham repeater access.
CTCSS/DCS Scan	Yes	Detects unknown tones on active channels.
TX Timeout Timer (TOT)	Adjustable	Prevents accidental long transmissions.
FM Radio	65–108 MHz	Lets you listen to FM stations between calls.

🔋 Battery and Power

Parameter	Value	Practical Note
Battery Type	Li-ion 7.4 V 4800 mAh	Long-life power cell for extended missions.
Charging Time	2–5 hours	Fast desktop cradle with LED status.
Standby Time	30–36 hours	Excellent for continuous deployment.
Charging Temperature	5 °C – 40 °C	Avoid overheating to maximize lifespan.
Power Save Modes	1:1 to 1:4 cycles	Balances battery life and response speed.

🧱 Physical and Build Characteristics

Attribute	Value	Meaning in Practice
Dimensions (H × W × D)	130 × 60 × 35 mm	Compact and easy to grip even with gloves.
Weight (with battery)	≈ 290 g	Solid construction yet portable.
Antenna Connector	SMA-Female	Accepts Kenwood 2-pin mic and aftermarket antennas.
Body Material	ABS polycarbonate with rubber seals	Shock-resistant and weather-proof.
Display	Tri-color LCD	Readable in sunlight or darkness.
Flashlight	LED dual mode	Useful as emergency light or SOS beacon.

📡 Range and Performance

Condition	Expected Range	Notes
Urban Obstructions	0.5 – 2 miles	Limited by buildings and signal reflection.
Suburban / Rural	2 – 5 miles	Good line-of-sight performance.
Open Field / Water	5 – 8 miles	Ideal conditions yield long range.
Via Repeater	Up to 20 miles	Depends on repeater height and location.
With High-Gain Antenna	10 + miles	Upgrade for extended reach.

🧩 Accessories and Expandability

Accessory	Purpose
Fast Desktop Charger	Included with LED charge status.
Antenna	Flexible whip – replaceable SMA-Male.
Belt Clip / Lanyard	Provides secure carrying options.
Speaker Mic / Earpiece	Kenwood 2-pin standard for clarity and comfort.
Programming Cable	CHIRP-compatible for PC setup.
Battery Eliminator	Optional 12 V adapter for vehicle use.

🌐 Regulatory and Compliance

Parameter	Value	Meaning
FCC ID	2AJGM-UV9RPRO	Approved for U.S. operation under Part 90/15.
CE Mark	Yes	Complies with EU safety and RF emission standards.
RF Exposure Limit	Maintain ≥ 2.5 cm from face	Meets IEEE C95.1 requirements.
License Requirement	Ham license required for TX (U.S.)	Receive-only is license-free.

⚠️ Known Issues

Issue	Description / Cause	Impact / Fix
Charging Contact Sensitivity	Dock alignment may be loose.	Ensure firm placement and clean contacts.
Firmware Differences	Menu layout varies by batch.	Check version via CHIRP before uploading.
Mic Seal Wear	Waterproof rubber loosens over time.	Replace cover if cracked to maintain IP rating.
Backlight Glitch	Stays on after TX on some units.	Cycle power to reset display.
VOX Over-Sensitivity	Triggers in loud areas.	Set level ≤ 4 for stable use.
Antenna Mismatch	Stock antenna slightly under-tuned for UHF.	Upgrade to a high-gain model.
Waterproofing Post-Repair	Opening radio breaks seal.	Avoid disassembly to preserve integrity.
FM Audio Hiss	Background static in broadcast mode.	Normal behavior for wideband FM.

🧭 Practical Takeaways

The UV-9R Pro offers superior waterproofing, extended runtime, and dependable range in a rugged body that easily survives dust, rain, and drops. It’s compatible with UV-series accessories, yet more durable than most handhelds in its price range.

Best suited for hikers, security personnel, rescue teams, and radio enthusiasts who require field-ready performance. To maintain reliability, use original Baofeng chargers and verify firmware compatibility before CHIRP programming.

🏁 Conclusion

The Baofeng UV-9R Pro is a standout waterproof handheld that blends endurance, clarity, and power. While minor issues like firmware variance and charging alignment exist, its rugged design and strong audio make it one of the most reliable mid-tier Baofeng models.

For anyone needing a durable, long-lasting transceiver for outdoor or professional use, the UV-9R Pro remains a trusted, field-proven companion.
