The Baofeng UV-5RM is an enhanced variant of the UV-5R family that blends durability, upgraded firmware, and improved audio performance in a compact form factor. Featuring dual-band functionality, higher-quality speaker output, and improved heat dissipation, the UV-5RM is designed for reliable use across amateur, emergency, and recreational communication environments.
Baofeng UV-5RM
A refined UV-5R-style handheld with stronger speaker output, splash resistance, CHIRP compatibility, and broad accessory support. A strong pick for emergency kits, backup use, and affordable everyday ham operation.
- Dual-band VHF/UHF operation
- Improved audio clarity
- IP54 splash resistance
- Works with common UV-5R accessories
This guide provides a complete breakdown of its specifications, capabilities, and real-world performance, along with a section detailing known issues reported by operators and users.
⚙️ Core Specifications
| Specification | UV-5RM Value | Practical Meaning |
|---|---|---|
| Frequency Range | 136–174 MHz (VHF), 400–520 MHz (UHF) | Enables two-band operation for ham, community, and emergency frequencies. |
| FM Broadcast Receiver | 65–108 MHz | Lets you listen to FM radio for updates, music, or weather when idle. |
| Transmit Power | 5 W (High) / 1 W (Low) | Balanced output suitable for both close-range and extended field use. |
| Power Levels | Dual (High / Low) | Switchable depending on range or battery-saving needs. |
| Operating Voltage | 7.4 V DC (Li-ion) | Compatible with standard Baofeng accessories and chargers. |
| Battery Capacity | 1800 mAh (standard) / 2800 mAh (extended optional) | Delivers 6–10 hours of active use and up to 36 hours of standby. |
| Modulation Type | FM (F3E), wide/narrow selectable | Provides audio clarity and compliance with narrowband requirements. |
| Audio Output Power | ≈ 1 W | Clear and strong sound output suitable for outdoor environments. |
| Receiver Sensitivity | ≈ 0.25 µV | Detects weak signals efficiently over longer distances. |
| Selectivity / Spurious Rejection | ≥ 60 dB | Improves clarity by filtering adjacent-channel noise. |
Who the UV-5RM is best suited for
The UV-5RM makes the most sense for users who want the familiarity of the UV-5R platform, but with a slightly tougher build, better speaker output, and more polished day-to-day usability.
- First-time ham operators
- Preparedness and emergency kits
- Field users who want splash resistance
- Anyone who already owns UV-5R accessories
🔊 Communication Features
| Feature | UV-5RM Value | What It Means in Practice |
|---|---|---|
| Dual Watch / Dual Standby | Supported | Lets you monitor two frequencies at once – ideal for repeater and simplex monitoring. |
| CTCSS / DCS Tone Squelch | 50 CTCSS + 104 DCS | Allows privacy tones for cleaner communication with your group. |
| VOX (Hands-Free) | Adjustable (1–10 levels) | Enables automatic voice-triggered transmission. |
| Channel Memory | 128 channels | Store frequently used channels for fast recall. |
| Scan Function | Yes | Finds active frequencies automatically. |
| Voice Prompt | English / Chinese | Offers spoken feedback during setup. |
| TX Timeout Timer (TOT) | 15–180 s adjustable | Prevents overheating from long accidental transmissions. |
| Keypad Backlight | Blue / Orange | Improves visibility in dark environments. |
| Programming Software | CHIRP compatible | Simplifies configuration and memory management via PC. |
🔋 Power, Battery & Charging
| Parameter | Value | Practical Note |
|---|---|---|
| Battery Type | 7.4 V Li-ion rechargeable | Standard UV-series compatible battery. |
| Standard Battery | BL-5 (1800 mAh) | Sufficient for most daily operations. |
| Extended Battery | BL-5L (2800 mAh) | Provides longer runtime for field use. |
| Charging Time | 3.5–4 hours | Desktop cradle with LED indicator for charge status. |
| Charger Input | 10 V DC / 500 mA | Compatible with Baofeng OEM chargers. |
| Battery Eliminator | Optional 12 V adapter | Powers the radio continuously in vehicles. |
🧱 Physical & Build Characteristics
| Attribute | Value | Practical Meaning |
|---|---|---|
| Dimensions (H × W × D) | 110 × 58 × 32 mm | Compact and comfortable for long-term carry. |
| Weight | ≈ 250 g | Light yet sturdy construction. |
| Antenna Connector | SMA-Female | Compatible with standard and upgraded antennas. |
| Material / Build | Reinforced ABS polycarbonate | Offers solid durability against drops and outdoor exposure. |
| Water Resistance | IP-54 (splash resistant) | Suitable for outdoor and emergency conditions. |
| Display Type | Dual-line LCD | Shows frequency, channel names, and dual-watch info. |
| Design Finish | Metallic faceplate with ergonomic keypad | Enhanced grip and professional appearance. |
📡 Range & Performance in the Field
| Condition | Expected Range | Notes |
|---|---|---|
| Urban Areas | 1–2 miles | Good penetration through moderate obstructions. |
| Suburban / Rural | 3–6 miles | Reliable clear-sight operation with little interference. |
| High-Gain Antenna Upgrade | Up to 10 miles | Extends range when paired with quality aftermarket antennas. |
| Repeater Use | Up to 20 miles | Provides regional coverage via repeater systems. |
Why the UV-5RM works well in the field
The UV-5RM is easy to recommend as a field radio because it combines decent battery life, good speaker output, repeater compatibility, and support for better aftermarket antennas.
- Up to 3–6 miles in suburban and rural use
- Up to 20 miles through repeaters
- Supports high-gain antenna upgrades
- Compact enough for hiking, events, and go-bags
🧩 Accessories & Expandability
| Accessory | Compatibility | Why It Matters |
|---|---|---|
| Speaker Mic | Kenwood 2-pin | Improves clarity in noisy environments. |
| Programming Cable | USB-to-TTL (Kenwood 2-pin) | Enables quick setup through CHIRP. |
| Extended Battery / Eliminator | BL-5L / DC 12 V cable | Offers longer runtime or continuous power. |
| High-Gain Antenna | SMA-Male compatible | Enhances transmit and receive performance. |
| Headset / Earpiece | Yes (2-pin PTT) | Great for discrete use in events or operations. |
| Car Charger / Dock | Standard desktop dock | Provides convenient recharging. |
🌐 Regulatory & Certification Details
| Parameter | Value | Meaning for Users |
|---|---|---|
| FCC ID | ZP5BF-5RM | Certified under FCC Part 97 for amateur operation. |
| CE Mark | Yes | Meets European EMC and safety standards. |
| License Requirement | Amateur license required for TX | Legal for receive-only operation without a license. |
| Frequency Restrictions | FRS/GMRS receive only | Not certified for commercial or unlicensed use. |
| Firmware | Updated UV-series firmware | Compatible with UV-5R and UV-5RE channel memories. |

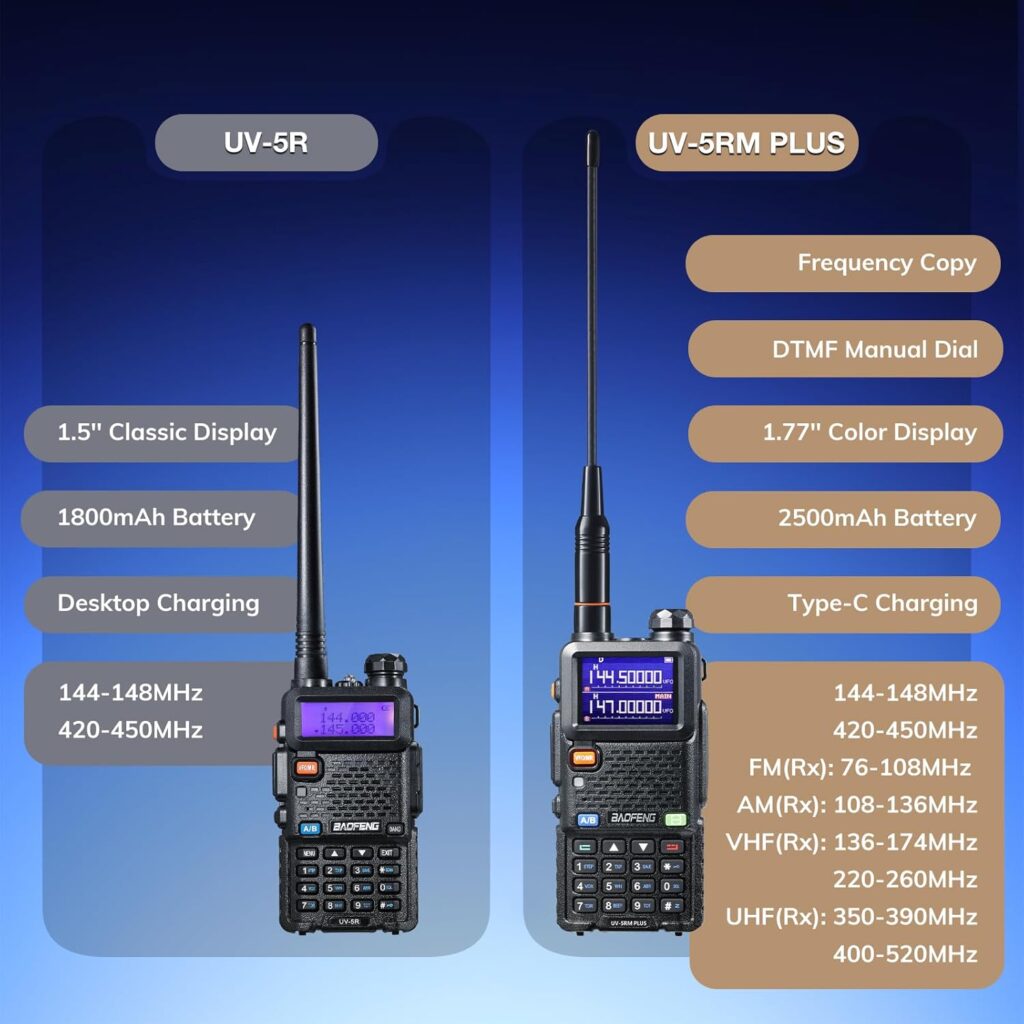

🛰️ Model Variants & Compatibility
| Model Variant | Key Difference | Shared Features |
|---|---|---|
| UV-5RM | Refined exterior, upgraded speaker, stable firmware | 100% accessory and firmware compatible with UV-5R/RE. |
| UV-5R Classic | Basic model | Shares identical internal structure and software. |
| UV-5RE / UV-5RA | Cosmetic updates | Same performance, compatible batteries and antennas. |
| UV-5R Plus | Metallic finish and enhanced speaker grill | Similar electrical specs to UV-5RM. |
Why buyers still like the Baofeng UV-5RM
- Familiar UV-5R-style platform
- Good value for the price
- Wide accessory compatibility
- Better speaker clarity than many basic budget HTs
- CHIRP support for easier programming
⚠️ Known Issues
| Issue | Description | Impact / Fix |
|---|---|---|
| Audio Distortion at High Volume | Distortion or crackle occurs at maximum speaker level. | Keep volume under 80% for best clarity. |
| Charger Dock Contact Sensitivity | Charging pins can misalign, preventing charging. | Ensure a secure click when placing in the cradle. |
| Antenna Performance Variability | Stock antenna gain varies between units. | Upgrade to a Nagoya NA-771 or RH-771 for consistent results. |
| Firmware Version Variability | Some batches use slightly different menu numbering. | Use CHIRP to confirm firmware before programming. |
| Battery Life Variation | Newer batteries have lower runtime than advertised. | Use genuine BL-5 or BL-5L packs for full performance. |
| Display Brightness Fluctuation | Some units show minor flicker under heavy load. | Cosmetic only — does not affect performance. |
| VOX Delay / False Triggers | Slight delay or false transmission activation in noisy areas. | Adjust VOX level or disable when not in use. |
| FM Mode Lockout Bug | Occasional lock when switching from FM to memory channels. | Restart or re-enter VFO mode to restore normal function. |
🧭 Practical Takeaways
The UV-5RM offers the proven reliability of the UV-5R with a more refined build and improved speaker clarity. It is fully compatible with UV-series accessories and CHIRP programming, making it an ideal choice for emergency kits, field operations, and everyday amateur use. Known issues are minor and typically limited to firmware or component variability between production runs.
The Baofeng UV-5RM is one of the better-value radios in the UV-5R family
If you want a budget dual-band handheld with improved speaker performance, splash resistance, CHIRP compatibility, and strong accessory support, the UV-5RM is an easy model to shortlist. It keeps the strengths of the classic UV-5R platform while smoothing out some of the rough edges.
Check Price on Amazon🏁 Conclusion
The Baofeng UV-5RM continues the legacy of the UV-5R platform while refining the design for modern operators. With its solid RF performance, enhanced audio clarity, and updated firmware, it stands as one of the most dependable mid-range handhelds in the Baofeng lineup. Whether you’re a first-time radio enthusiast or an experienced ham looking for a lightweight backup transceiver, the UV-5RM delivers impressive performance, long battery life, and broad accessory support – all in an affordable package.
Should you buy the UV-5RM?
Buy it if: you want an affordable dual-band handheld with better speaker clarity, a tougher shell, and full compatibility with the UV-5R accessory ecosystem.
Skip it if: you need premium RF performance, perfect consistency between production batches, or a radio from Yaesu, Icom, or Kenwood class hardware.
