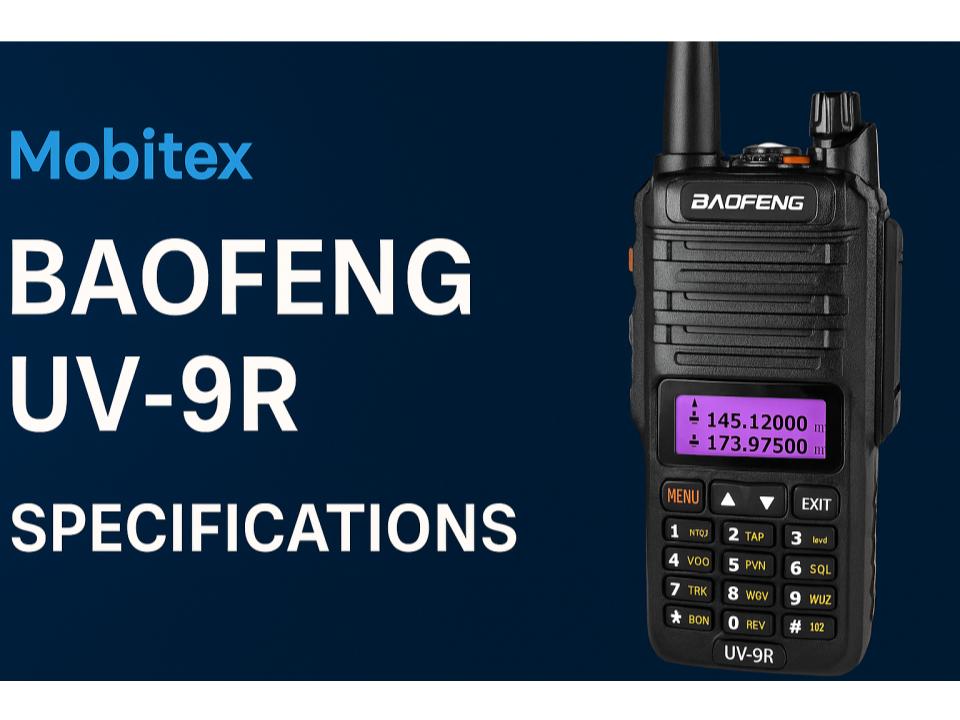

Baofeng UV-9R Specifications and Complete Practical Guide

Mobitex contains affiliate links and is a member of the Amazon Services LLC Associates Program. If you make a purchase using one of these links, we may receive compensation at no extra cost to you. This helps support our research, testing and writing.

The Baofeng UV-9R is Baofeng’s ruggedized waterproof handheld transceiver designed for outdoor, marine, and field environments. Unlike most UV-5R variants, the UV-9R features an IP67 waterproof and dustproof housing, improved battery sealing, and a reinforced chassis. Built for durability and reliability, it is the preferred choice among off-roaders, rescue teams, and amateur operators who need a handheld that can handle real-world exposure.

This guide outlines the UV-9R’s full technical specifications, key features, and known issues as reported by operators and users online.

⚙️ Core Specifications

Specification	UV-9R Value	Practical Meaning
Frequency Range	136–174 MHz (VHF), 400–520 MHz (UHF)	Dual-band coverage for both local VHF repeater networks and UHF short-range use.
FM Broadcast Receiver	65–108 MHz	Enables reception of FM radio for entertainment and local information.
Transmit Power	5 W (High) / 1 W (Low)	Delivers strong transmit range while maintaining battery efficiency.
Operating Voltage	7.4 V DC (Li-ion)	Uses a sealed 7.4 V battery compatible only with UV-9R series chargers.
Battery Capacity	2200 mAh (standard) / 3200 mAh (extended)	Provides 12–16 hours of typical operation with high standby life.
Modulation Type	FM (F3E)	Standard analog FM for clear voice communication.
Audio Output Power	≈ 1 W	Loud output through a waterproof speaker grill.
Receiver Sensitivity	≈ 0.2 µV	Ensures stable reception even in remote areas.
Selectivity / Spurious Rejection	≥ 65 dB	Filters unwanted adjacent-frequency interference.

🔊 Communication Features

Feature	UV-9R Value	What It Means in Practice
Dual Watch / Dual Standby	Supported	Lets you monitor two channels simultaneously — ideal for safety and team communication.
CTCSS / DCS Tone Squelch	50 CTCSS + 104 DCS	Filters chatter and ensures you only hear transmissions from your own group.
VOX (Hands-Free)	Adjustable sensitivity	Allows voice-activated transmission — convenient for driving or working hands-free.
Channel Memory	128 channels	Stores commonly used frequencies for quick access.
Scan Function	Yes	Automatically searches active frequencies.
Voice Prompt	English / Chinese	Aids in setup and mode selection.
TX Timeout Timer (TOT)	Adjustable 15–180 s	Prevents overheating and over-transmission.
Keypad Backlight	Orange	Illuminated for use in low-light or outdoor settings.
Programming Software	CHIRP compatible	Fully programmable via PC for quick channel and tone setup.

🔋 Power, Battery & Charging

Parameter	Value	Practical Note
Battery Type	7.4 V Li-ion (sealed pack)	Protected design for waterproofing.
Standard Battery	2200 mAh	Provides over 12 hours of average use.
Extended Battery	3200 mAh (optional)	Ideal for multi-day outdoor operations.
Charging Time	≈ 4–5 hours	Charges via waterproof desktop cradle.
Charger Input	10 V DC / 500 mA	Compatible with 9R-series cradle chargers.
Battery Eliminator	Optional 12 V car adapter	Allows continuous vehicle-powered operation.

🧱 Physical & Build Characteristics

Attribute	Value	Practical Meaning
Dimensions (H × W × D)	130 × 60 × 35 mm	Slightly larger and heavier than UV-5R due to waterproof sealing.
Weight	≈ 280 g	Solid feel with extra ruggedness for field conditions.
Antenna Connector	Proprietary waterproof SMA-type	Designed for watertight sealing; not standard SMA.
Material / Build	Polycarbonate reinforced with rubberized coating	Durable, shock-resistant, and fully sealed against dust and water.
Water Resistance	IP67	Fully submersible up to 1 meter for 30 minutes.
Display Type	Single dual-line LCD	Displays dual frequencies or channel names.
Design Finish	Rugged black with orange highlights	Grip-friendly and professional outdoor look.

📡 Range & Performance in the Field

Condition	Expected Range	Notes
Urban Environments	1–2 miles	Shorter range due to building reflections and absorption.
Suburban / Rural Areas	3–8 miles	Excellent clarity in open environments.
Line-of-Sight / Elevated Position	10–15 miles	Achievable under ideal outdoor conditions.
Repeater Access	Up to 25 miles +	Reliable long-range coverage through repeaters.

🧩 Accessories & Expandability

Accessory	Compatibility	Why It Matters
Speaker Mic	Waterproof 2-pin Baofeng type	Allows clear communication without removing from belt clip.
Programming Cable	Specialized waterproof connector	Required for CHIRP setup — not interchangeable with UV-5R cables.
High-Gain Antenna	UV-9R-compatible waterproof	Improves effective range while maintaining IP rating.
Extended Battery / Eliminator	UV-9R series only	Ensures long-term or vehicle operation.
Dock Charger	Included	Waterproof cradle maintains safe contact in wet conditions.

🌐 Regulatory & Certification Details

Parameter	Value	Meaning for Users
FCC ID	2AJGM-UV9R	Certified for amateur use under Part 97.
CE Mark	Yes	Meets EU safety and EMC standards.
License Requirement	Amateur license required for TX	Legal for ham operation, receive-only otherwise.
Frequency Restrictions	May monitor FRS/GMRS	Transmission not allowed without certification.
Firmware	Waterproof series firmware	Dedicated 9R firmware not compatible with UV-5R programming files.

🛰️ Model Variants & Compatibility

Model Variant	Key Difference	Shared Features
UV-9R	IP67 waterproof, 5 W output	Same dual-band performance as UV-5R.
UV-9R Plus	Larger 3200 mAh battery, USB charger	Improved runtime and accessory compatibility.
UV-9R Pro	Enhanced firmware, better heat dissipation	Upgraded version with minor performance refinements.
GT-3WP	Similar waterproof platform	Shared components with UV-9R.

⚠️ Known Issues

Issue	Description	Impact / Fix
Proprietary Antenna Connector	The waterproof SMA design limits antenna options.	Use 9R-specific antennas or adapters to connect standard SMA models.
Charging Dock Contact Sensitivity	Some docks require precise alignment to charge.	Seat the radio firmly until LED indicator turns red.
Audio Distortion at High Volume	Speaker enclosure can rattle at max volume.	Keep volume below 80% for clean sound.
Firmware Incompatibility with UV-5R Files	9R firmware differs from UV-5R, causing upload errors in CHIRP.	Use correct UV-9R driver or dedicated CSV import.
VOX Delay	Small transmission delay when using VOX.	Adjust VOX sensitivity or disable for critical use.
Rubber Port Covers Loosening Over Time	Frequent use of mic or programming ports weakens rubber seal retention.	Replace covers periodically or secure with silicone gasket.
Antenna Performance Variability	Factory antennas vary between production batches.	Replace with a known high-gain 9R-compatible waterproof antenna.
Waterproof Claim Limitations	Prolonged submersion beyond 30 min or saltwater use can breach seals.	Rinse and dry after exposure, avoid saltwater immersion.

🧭 Practical Takeaways

The Baofeng UV-9R is built for users who need dependable, rugged communication in challenging environments. Its IP67 waterproof design, long battery life, and solid RF performance make it ideal for hiking, rescue, marine, or construction use.
Known issues primarily involve connector limitations and minor firmware quirks but do not affect reliability.

With an upgraded speaker, weather resistance, and long-lasting battery, the UV-9R remains one of Baofeng’s most trusted field radios.

🏁 Conclusion

The Baofeng UV-9R stands out as a field-ready version of the UV-5R platform – stronger, sealed, and purpose-built for harsh conditions. It’s a top choice for outdoor enthusiasts, ham operators, and first responders who value both performance and protection.

If you need a durable, waterproof dual-band radio that won’t quit in the rain, mud, or snow, the UV-9R is the one to have – reliable, rugged, and engineered to last.
